PiShock Lite (2021 Q3)

OpenShock is not affiliated with PiShock

We are not affiliated with PiShock in any way and do not endorse their products. However, we do support flashing OpenShock on this board.

Fully compatible

This product is fully compatible with OpenShock.

Specifications

Pinout

  • Pin 15 is used for transmitting.

Media

Clean variant

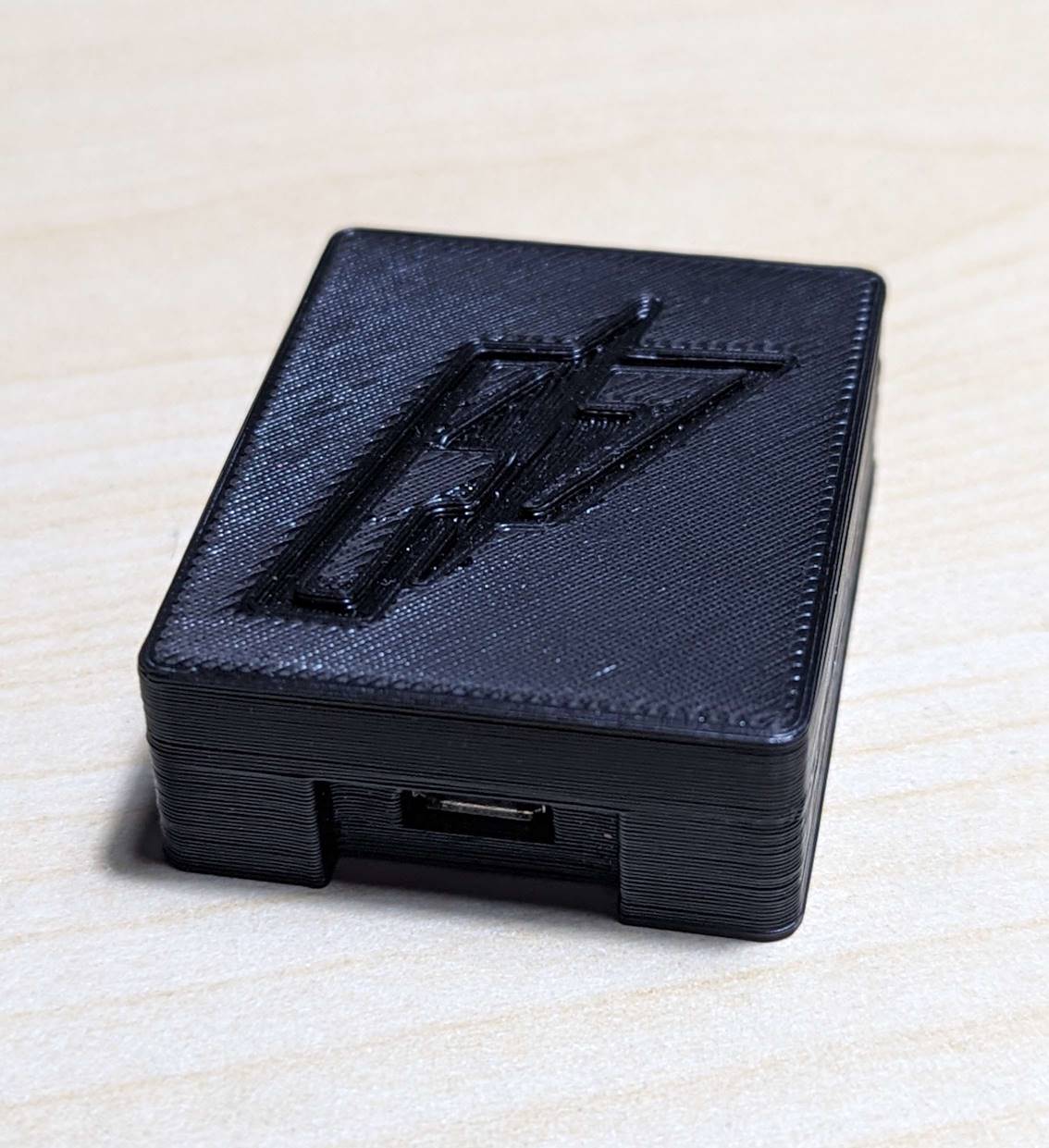

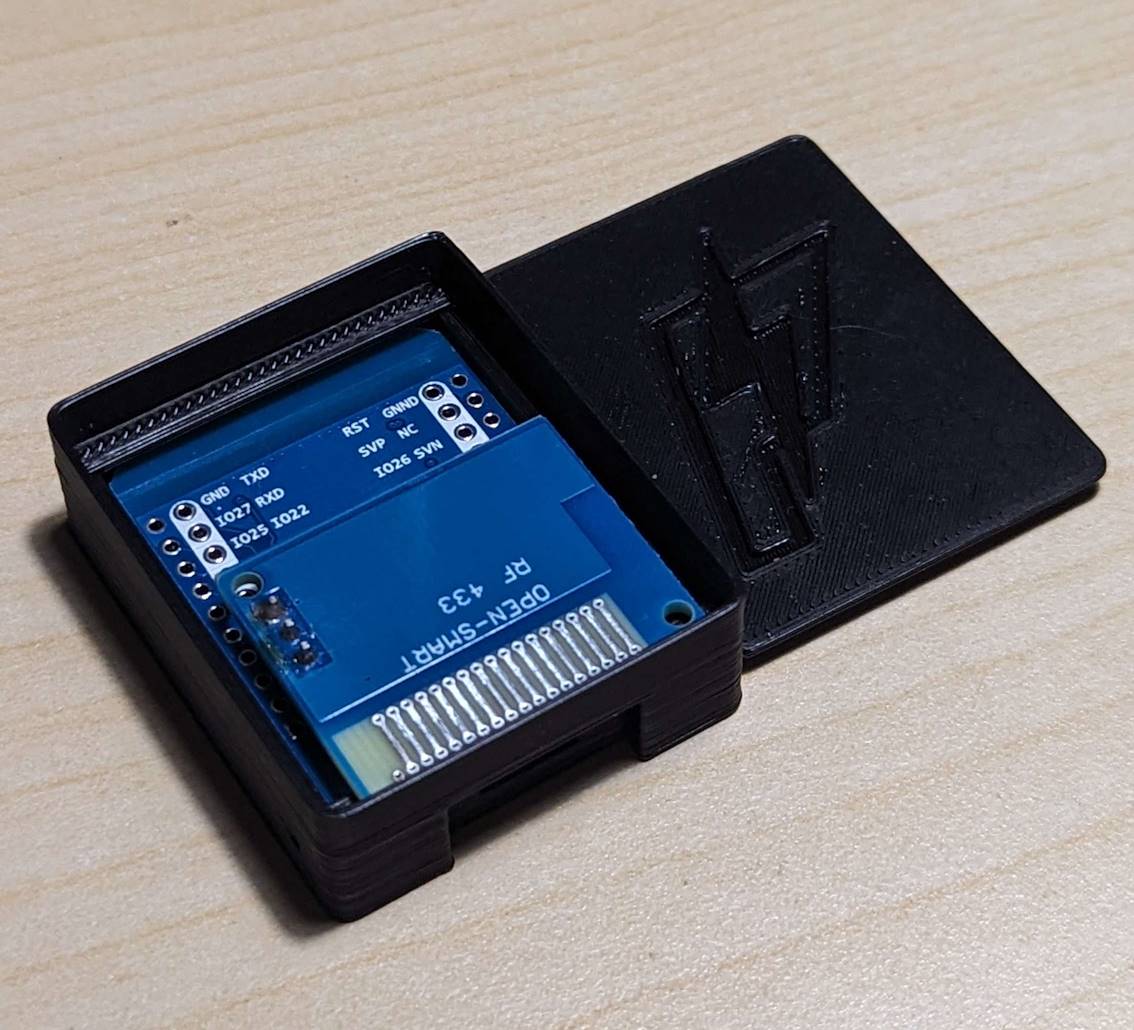

PiShock Lite - Clean variant - Case front view PiShock Lite - Clean variant - Case back view PiShock Lite - Clean variant - PCB back view

Burnt solder joint variant

Courtesy of @ulthirm on Discord.

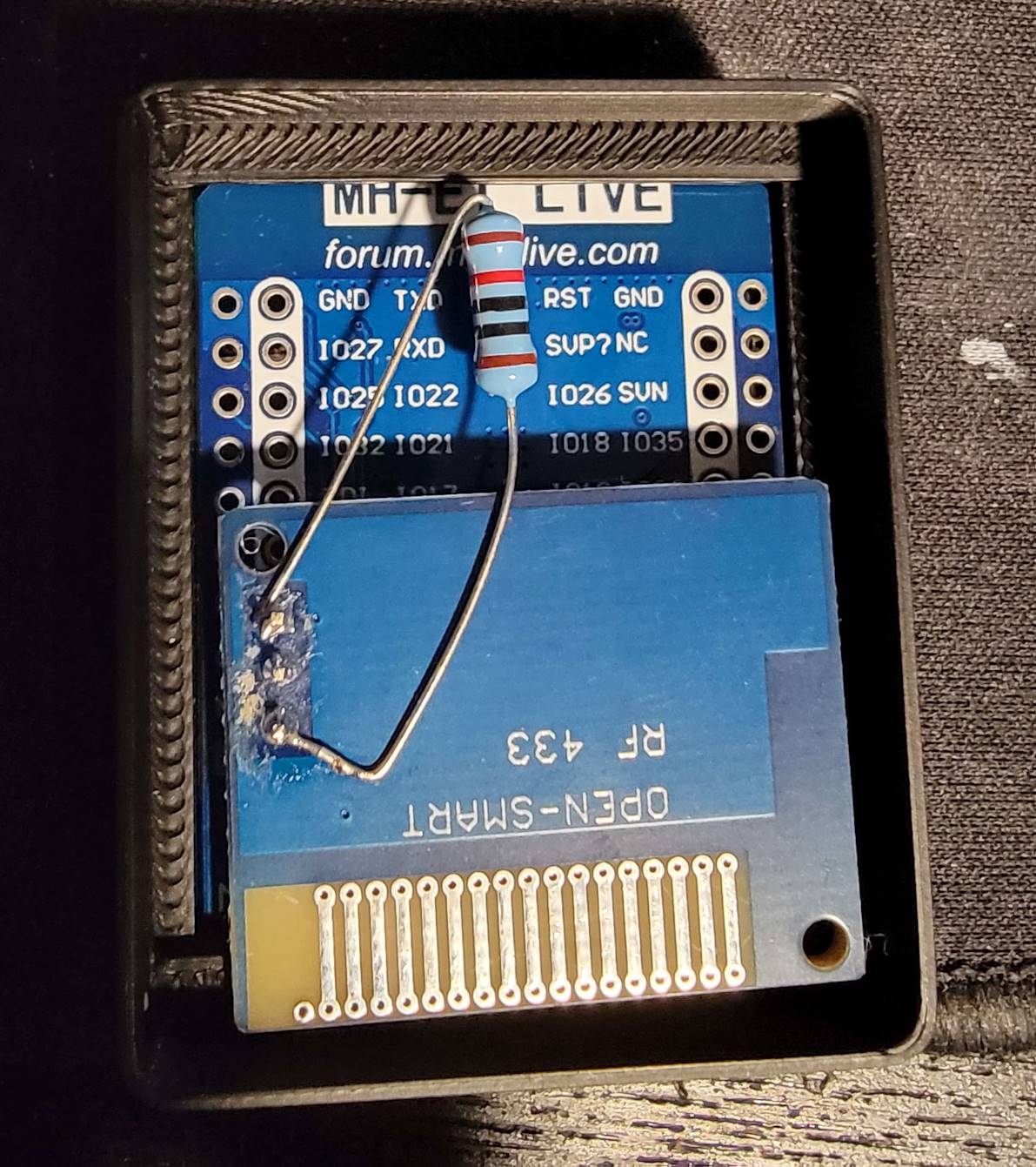

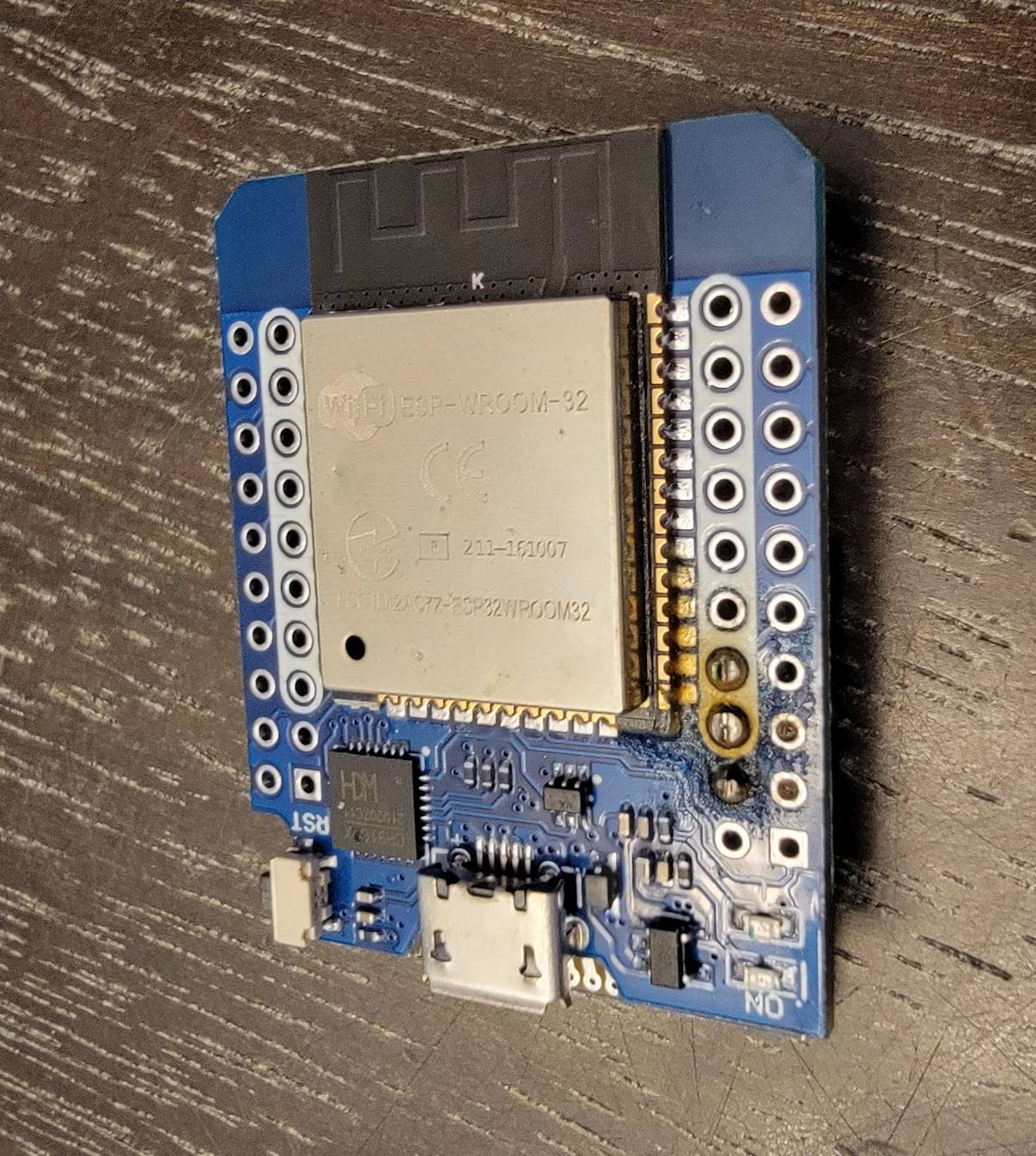

PiShock Lite - Burnt variant - PCB front view PiShock Lite - Burnt variant - PCB rear view

Cold solder joint variant

Courtesy of @pixelcommander on Discord.

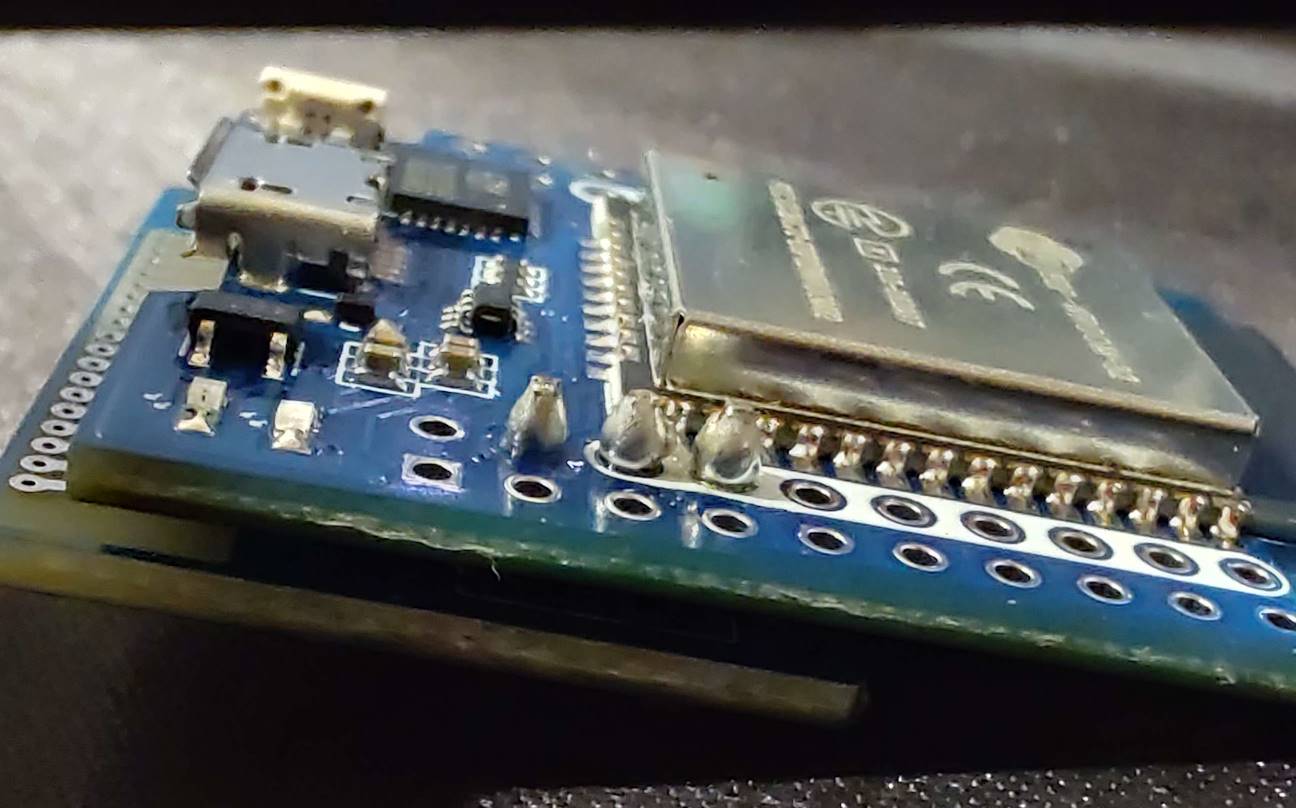

PiShock Lite - Cold variant - PCB side view
