CaiXianlin
Compatible
This product is compatible with OpenShock.
Cheap and easily acquirable.
Buying
Shockers
Best effort list of current AliExpress sellers. Feel free to add more sources to this list!
International: AliExpress
Netherlands: AliExpress
Cables
The charging port for this model is a standard DC 3.5 x 1.35mm. A USB to DC 3.5 x 1.35mm cable is used to charge the shocker. You might even have one laying around as they are common.
International: AliExpress

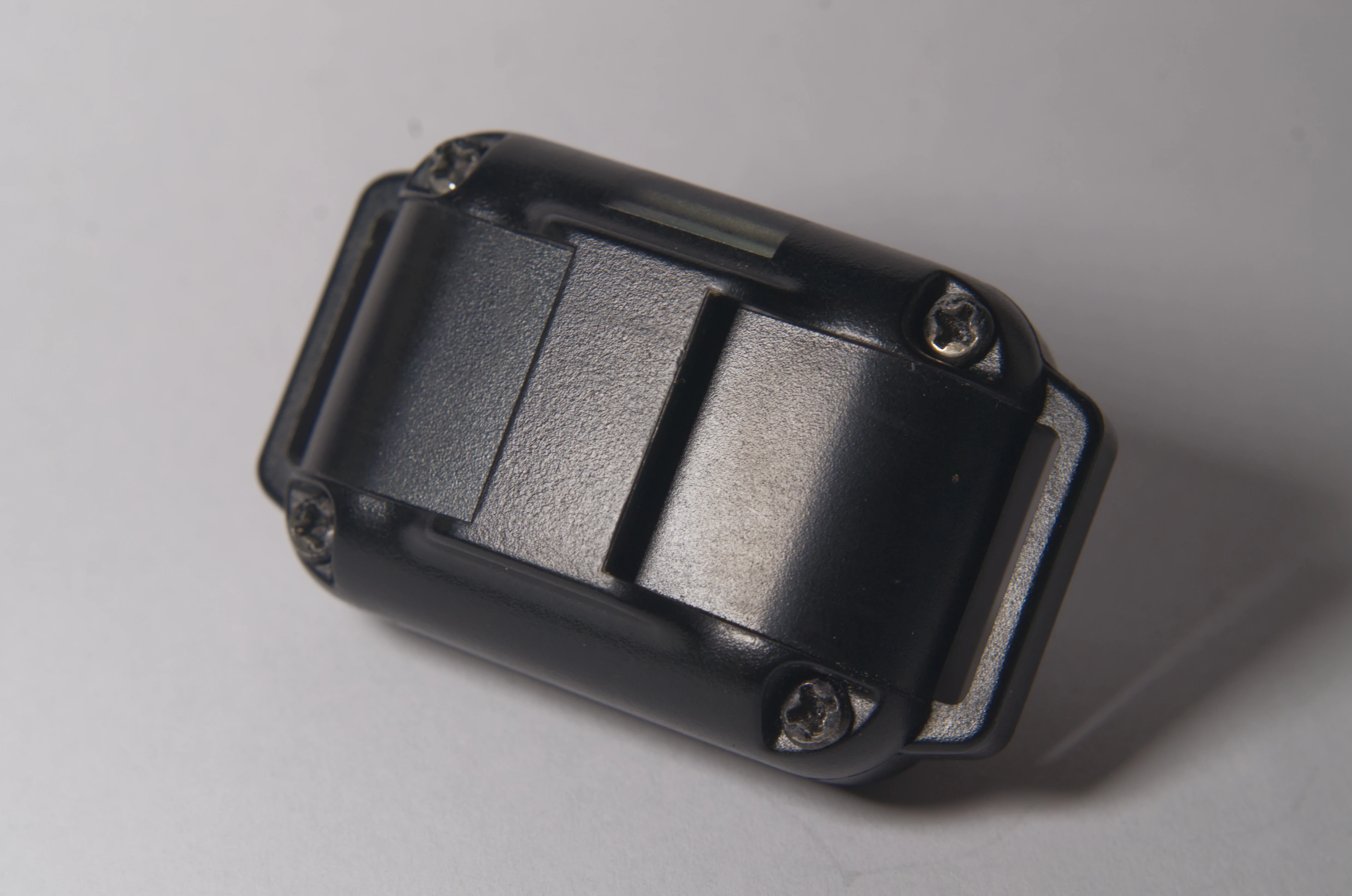

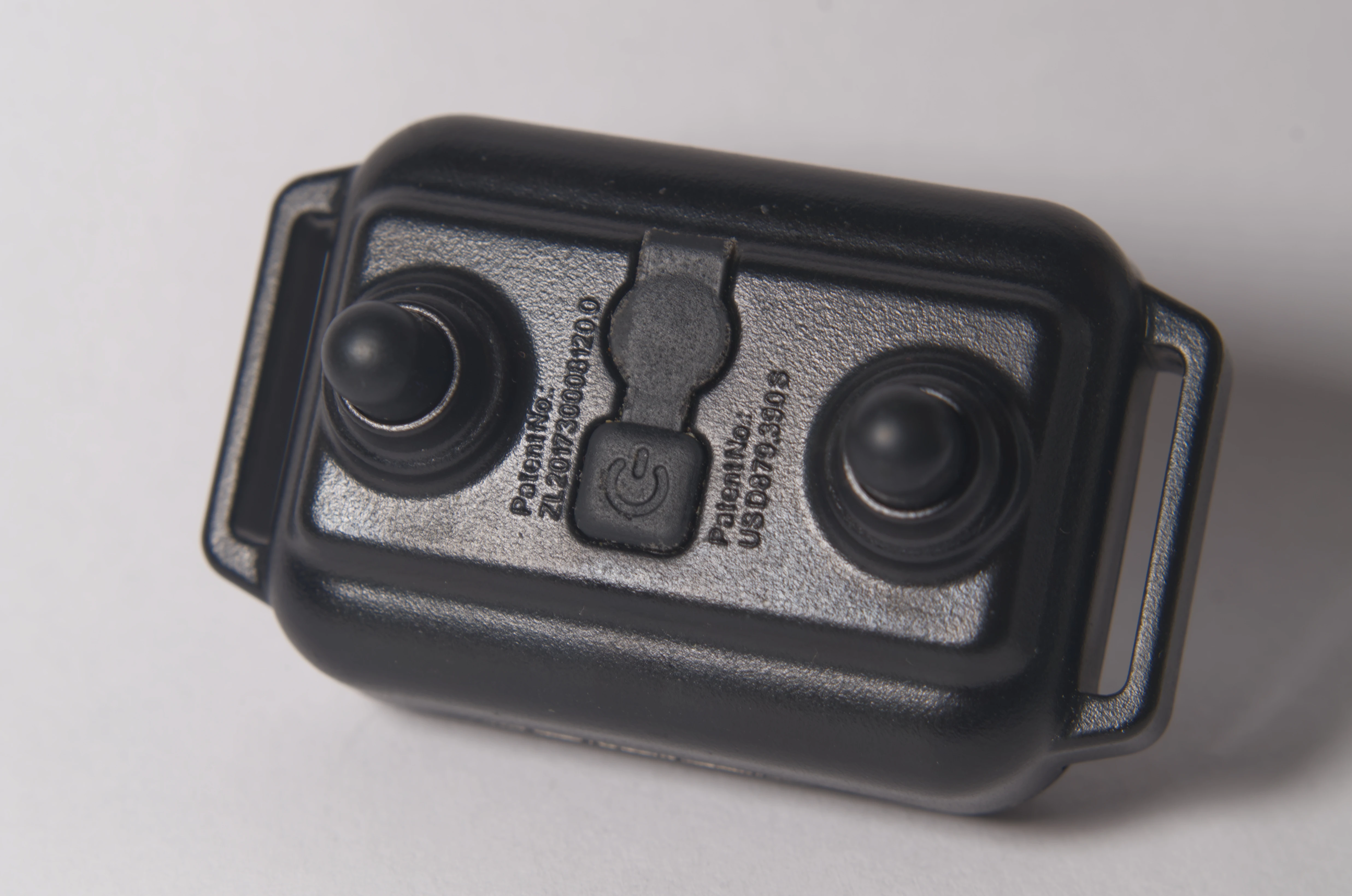

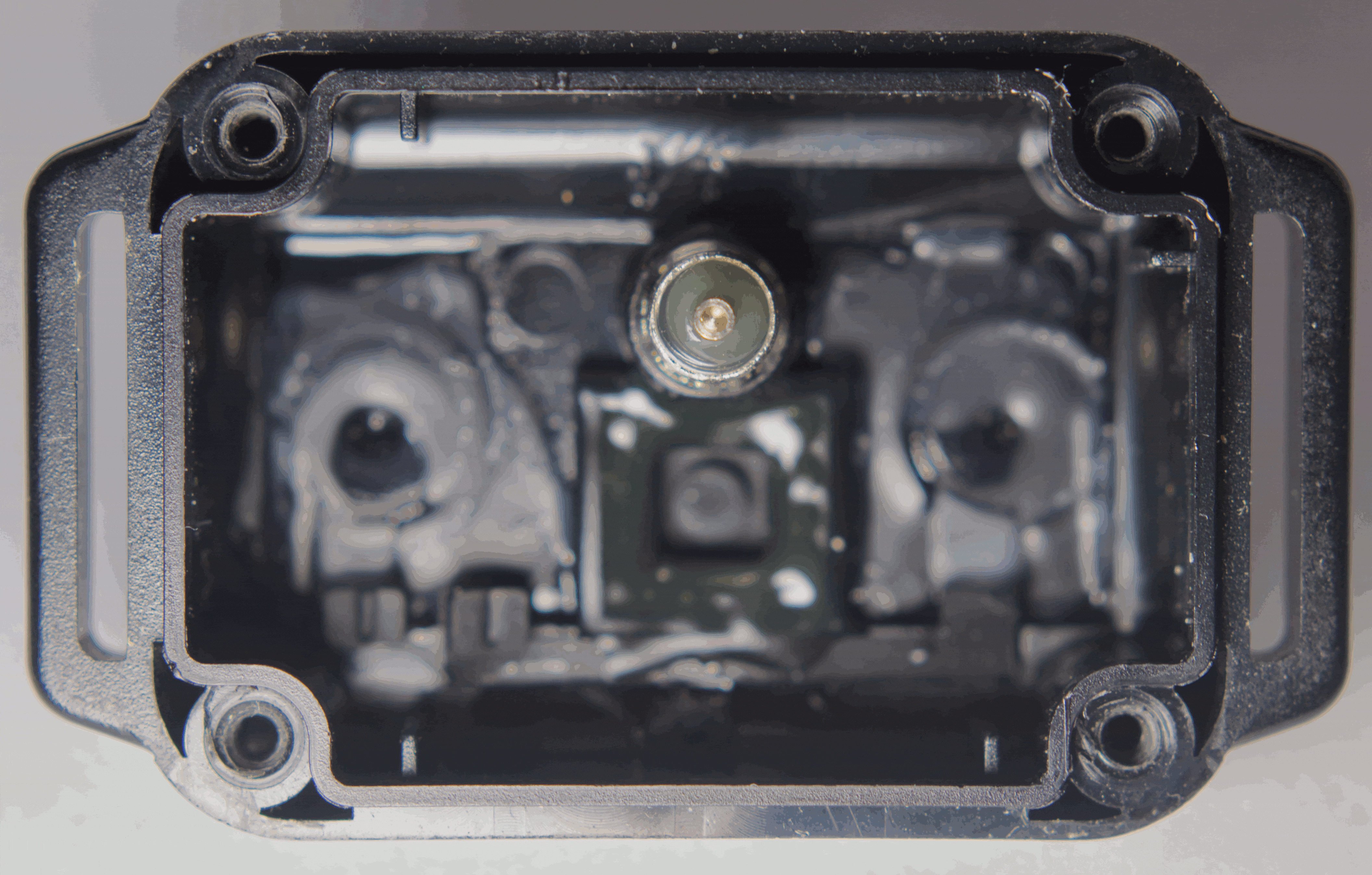

Media
Thank you @dasbrin
on Discord for the images.
Technical Specification
Official documents
RF Specification
Name | Value |
---|---|
Carrier Frequency | 433.95 MHz |
Modulation Type | ASK / OOK |
Baud Rate | 3950 Hz |
Message Format
The hex values represent the encoded result, ready to be transmitted at 3950 Hz baud
Name | Value | Length | Remarks |
---|---|---|---|
Prefix | 0xFC | 2 bits | |
Transmitter ID | 0 - 65535 | 16 bits | The collar will be Paired to this |
Channel Number | 0 - 2 | 4 bits | The collar will be Paired to this |
Action Command | 1 - 3 | 4 bits | 1 = Shock, 2 = Vibrate, 3 = Beep |
Command Intensity | 0 - 99 | 8 bits | Should always be 0 for beep |
Message checksum | Calculated | 8 bits | (sum of everything in front except prefix) modulo 256 |
Postfix | 0x88 | 2 bits |
Layout
[PREFIX ] = XX
[TRANSMITTER ID] = XXXXXXXXXXXXXXXX
[CHANNEL ] = XXXX
[MODE ] = XXXX
[STRENGTH ] = XXXXXXXX
[CHECKSUM ] = XXXXXXXX
[END ] = XX
Encoding
The following applies to a baud rate of 3950 Hz
Every 1
is encoded as 1110
or 0xE
Every 0
is encoded as 1000
or 0x8
Examples
Names are formatted as: Channel number (CH1), Command (SHOCK), Strength (99) For all examples the Transmitter ID
46231
is used
[CH1 SHOCK 00] = fc e8ee8e88e88e8eee 8888 888e 88888888 8e88ee88 88
[CH1 SHOCK 01] = fc e8ee8e88e88e8eee 8888 888e 8888888e 8e88ee8e 88
[CH1 SHOCK 02] = fc e8ee8e88e88e8eee 8888 888e 888888e8 8e88eee8 88
[CH1 SHOCK 03] = fc e8ee8e88e88e8eee 8888 888e 888888ee 8e88eeee 88
[CH1 SHOCK 50] = fc e8ee8e88e88e8eee 8888 888e 88ee88e8 8eeeeee8 88
[CH2 SHOCK 50] = fc e8ee8e88e88e8eee 888e 888e 88ee88e8 e888eee8 88
[CH3 SHOCK 50] = fc e8ee8e88e88e8eee 88e8 888e 88ee88e8 e88eeee8 88
[CH1 VIBRATE 50] = fc e8ee8e88e88e8eee 8888 88e8 88ee88e8 8eeeeeee 88
[CH2 VIBRATE 50] = fc e8ee8e88e88e8eee 888e 88e8 88ee88e8 e888eeee 88
[CH3 VIBRATE 50] = fc e8ee8e88e88e8eee 88e8 88e8 88ee88e8 e88eeeee 88
[CH3 VIBRATE 99] = fc e8ee8e88e88e8eee 88e8 88e8 8ee888ee ee8e8888 88
[CH1 SOUND ] = fc e8ee8e88e88e8eee 8888 88ee 88888888 8e88eee8 88
[CH2 SOUND ] = fc e8ee8e88e88e8eee 888e 88ee 88888888 8e8eeee8 88
[CH3 SOUND ] = fc e8ee8e88e88e8eee 88e8 88ee 88888888 8ee8eee8 88
[CH1 SHOCK 00] = fc e8ee8e88e88e8eee 8888 888e 88888888 8e88ee88 88
[CH1 SHOCK 99] = fc e8ee8e88e88e8eee 8888 888e 8ee888ee e8e8eeee 88
[CH1 VIBRATE 00] = fc e8ee8e88e88e8eee 8888 88e8 88888888 8e88ee8e 88
[CH1 VIBRATE 99] = fc e8ee8e88e88e8eee 8888 88e8 8ee888ee e8ee8888 88
Example untested RFCat code
# Import the necessary libraries and functions
from rflib import *
import time
# Set up the RfCat device
d = RfCat()
d.setPktPQT(0)
d.setMdmNumPreamble(0)
d.setEnableMdmManchester(False)
d.setFreq(433950000)
d.setMdmModulation(MOD_ASK_OOK)
d.setMdmDRate(3950)
d.makePktFLEN(22)
d.setMdmSyncWord(0)
"""
Returns the string representation of the action (Shock, Vibrate, or Beep)
"""
def get_action_string(action):
if action == 1:
return 'Shock'
elif action == 2:
return 'Vibrate'
elif action == 3:
return 'Beep'
else:
return 'Unknown'
# Since the receivers only support 3 channels, we can change the transmitter ID to extend the number of channels
for transmitter_id in range(46231, 46233):
# Loop through the channels
for channel in range(3):
# Loop through the actions
for action in range(1, 4):
# Loop through the intensities, but not if the action is 3 (beep)
for intensity in range(0, 100, 10) if action != 3 else [0]:
# Intensity has max of 99
if intensity == 100:
intensity = 99
# Assemble the payload
payload = (transmitter_id << 24) | (channel << 20) | (action << 16) | (intensity << 8)
# Calculate the checksum (sum(bytes) % 256)
checksum = 0
for i in range(8):
checksum += (payload >> (i * 8)) & 0xFF
checksum %= 256
# Add the checksum to the payload
payload |= checksum
# Assemble the message
message = bytes.fromhex('fc{0:040b}88'.format(payload).replace('1', 'e').replace('0', '8'))
print('Sending {0} on channel {1} with intensity {2} and checksum {3}'.format(get_action_string(action), channel, intensity, checksum))
# Transmit the message 5 times
for i in range(5):
d.RFxmit(message)
