ESP32-S3 "Dorx"

Codenamed "Dorx", this is a brandless knockoff ESP32-S3 board with a fake "ESP32-S3-WROOM-1" module.

Variants

  • N8R2 -- 8MiB of flash, 2MiB of PSRAM
  • N16R8 -- 16MiB of flash, 8MiB of PSRAM

Specifications

  • ESP32-S3 (Knockoff)
  • One WS2812B controllable LED
  • One LED for each of R/G/B:
    • Red when the board is powered
    • Green for serial traffic
    • Blue while flashing

Buying

Media

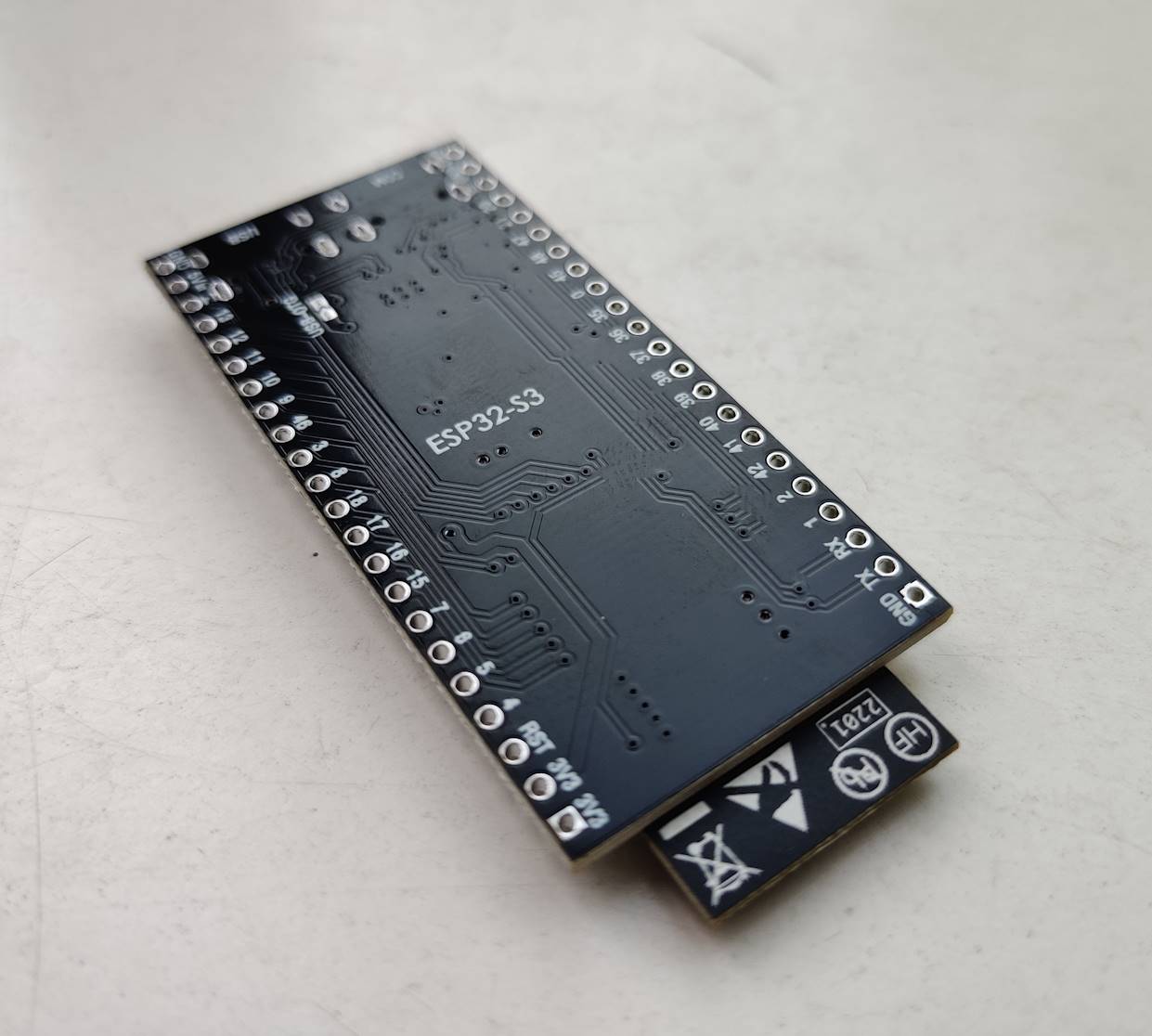

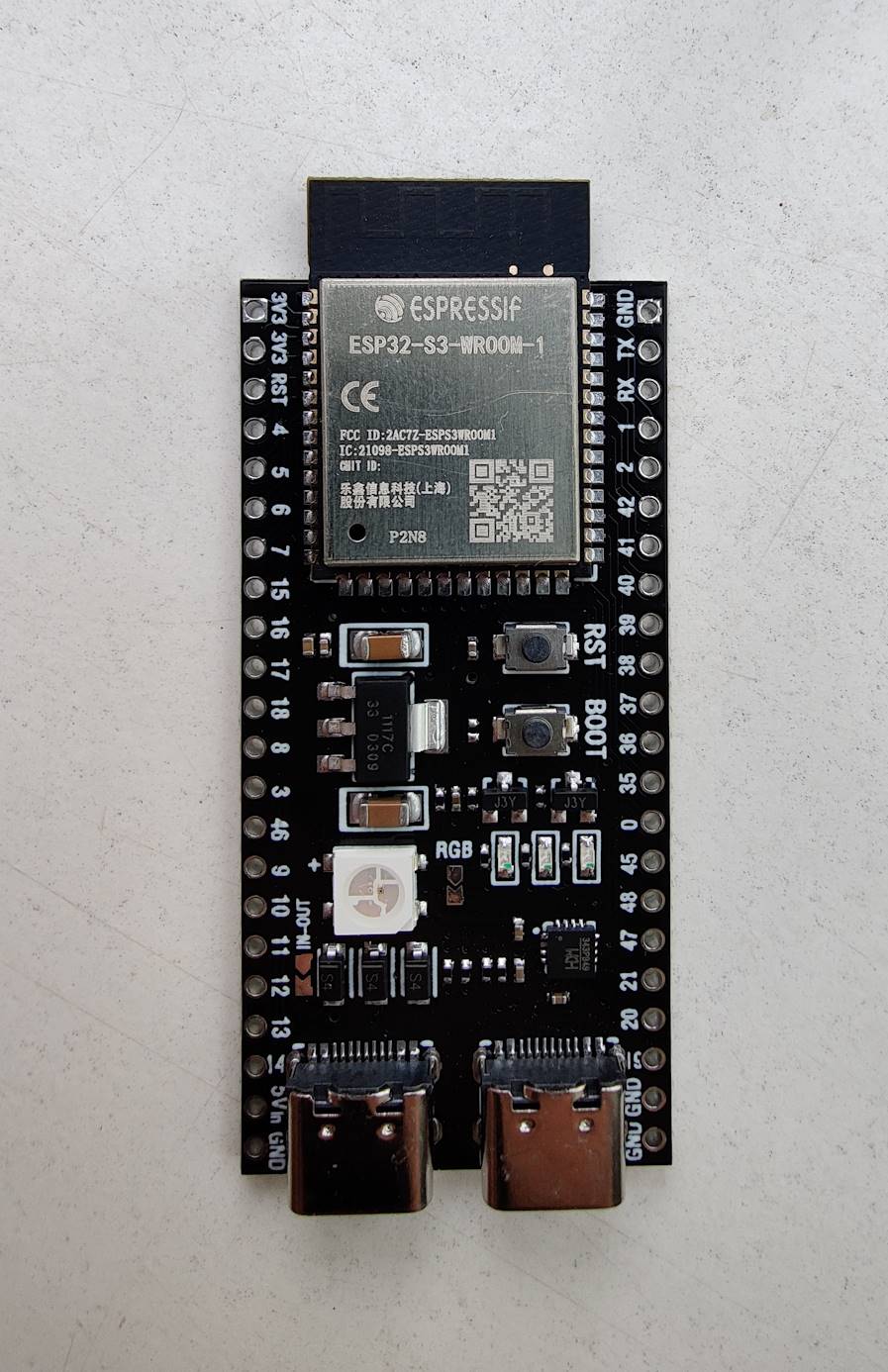

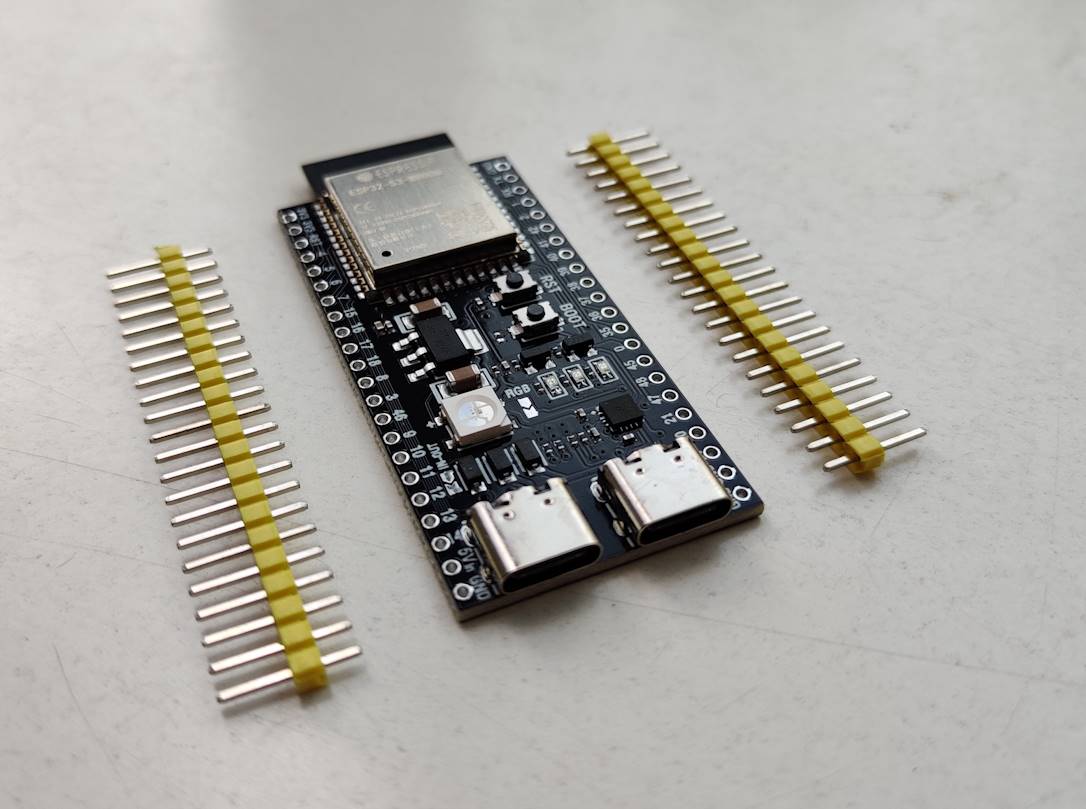

ESP32-S3 "Dorx" ESP32-S3 "Dorx" ESP32-S3 "Dorx"
