Seeed Xiao ESP32S3

Fully compatible

This product is fully compatible with OpenShock.

See the official webpage for a more exhaustive description.

Specifications

  • ESP32-S
  • 8MiB Flash
  • 8MiB PSRAM
  • Detachable antenna

Inconsistent Pin Labels

The pin labels printed on the board do not match the ESP32-S3's actual GPIO numbers. Please refer to the official Seeed documentation to find the correlations between the printed labels and the actual GPIO numbers.

Flashing

Extra steps required

Please read this section carefully.

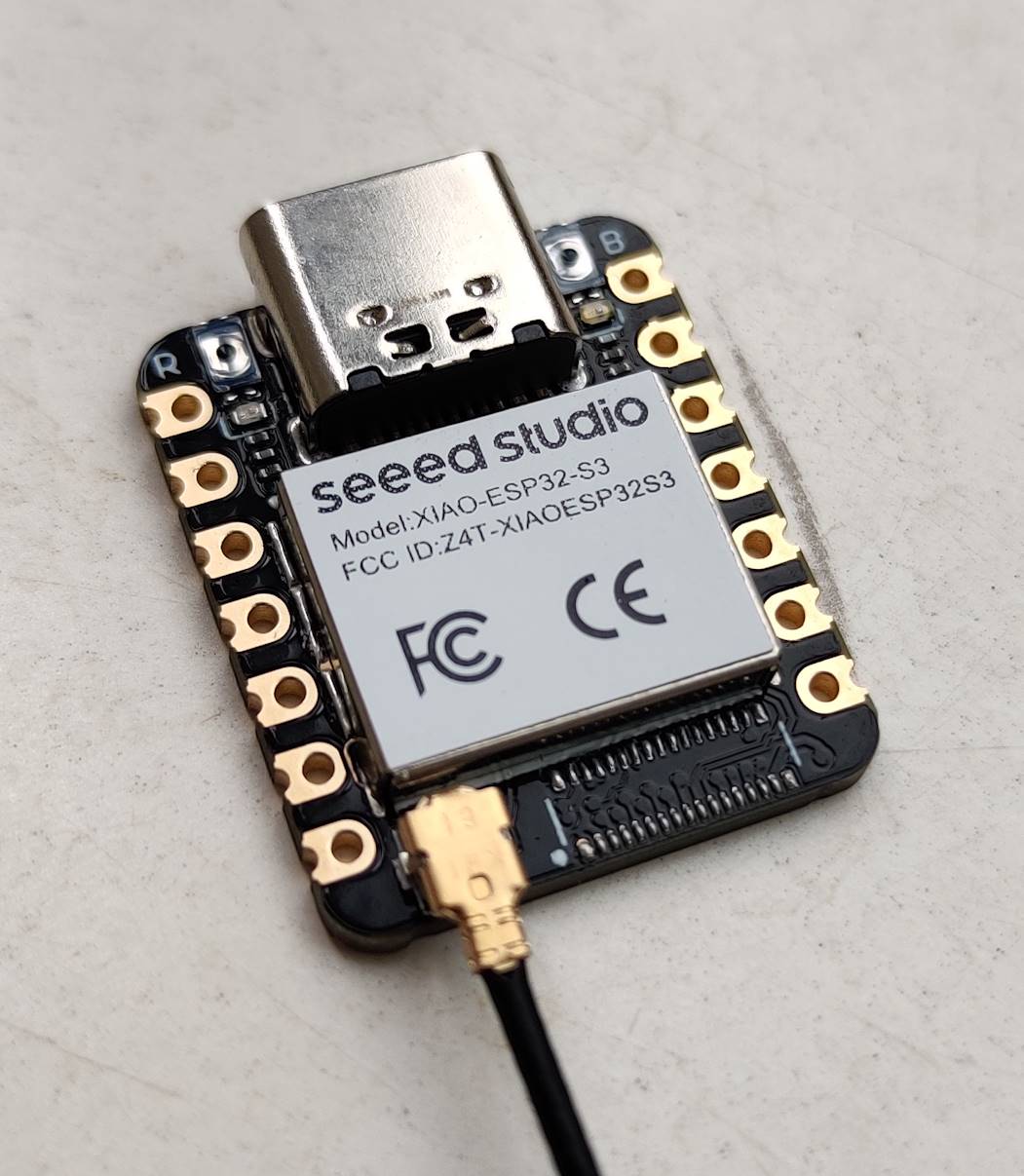

On the first picture in the Media section below, aside the USB-C are two (extremely small!) buttons.

  • The "R" button is "Reset";
  • The "B" button is "Bootloader".

To flash, you need to enter bootloader mode. Follow these steps:

  • Unplug the board.
  • Hold down the "B" button.
  • Replug the board while holding it down.

If everything went correctly, you can now flash the board using a flashing tool like esptool. After flashing, press "R" to reset the board into normal boot mode.

Media

Info

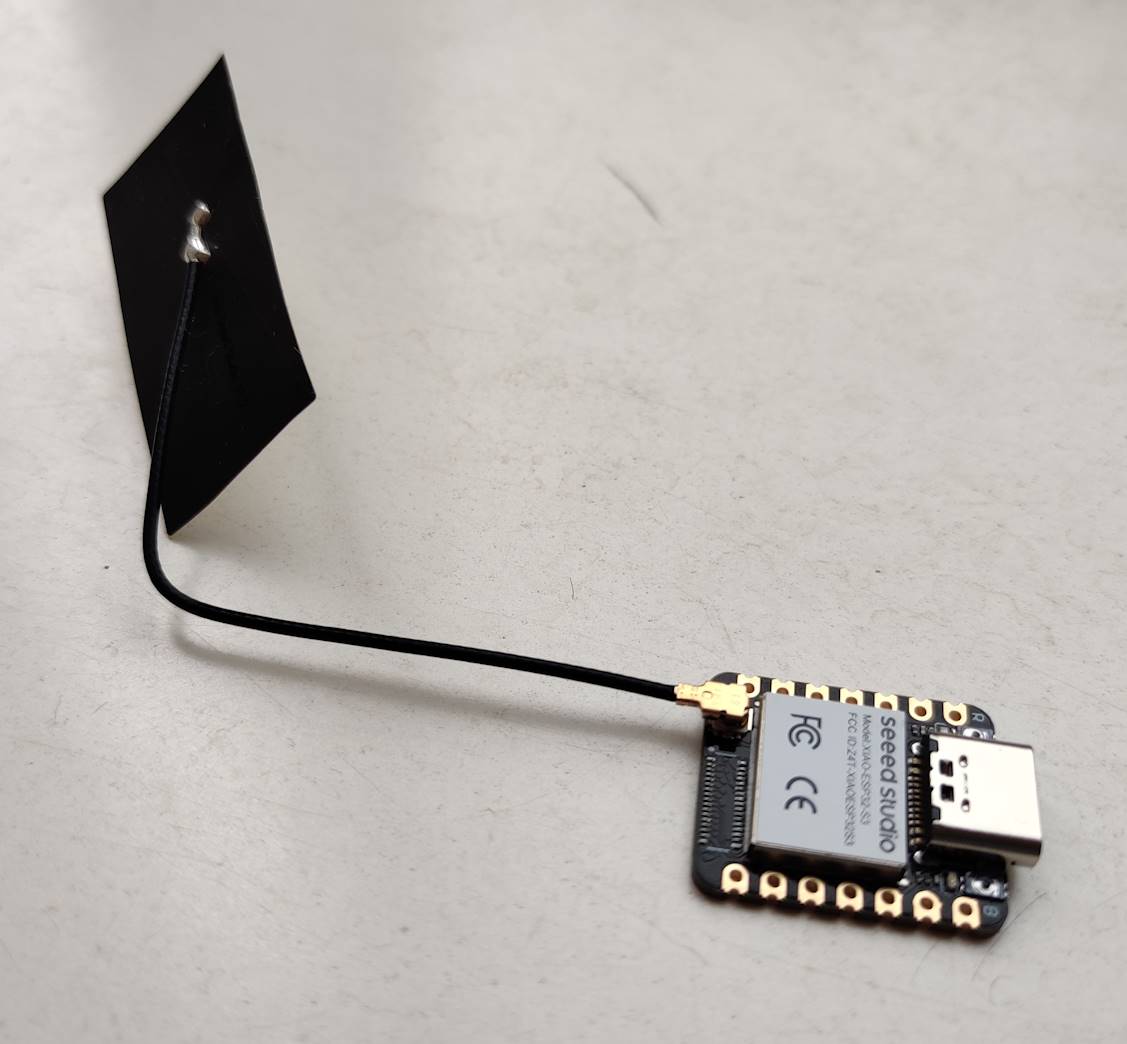

The antenna is detachable. The back side of the antenna has adhesive tape.

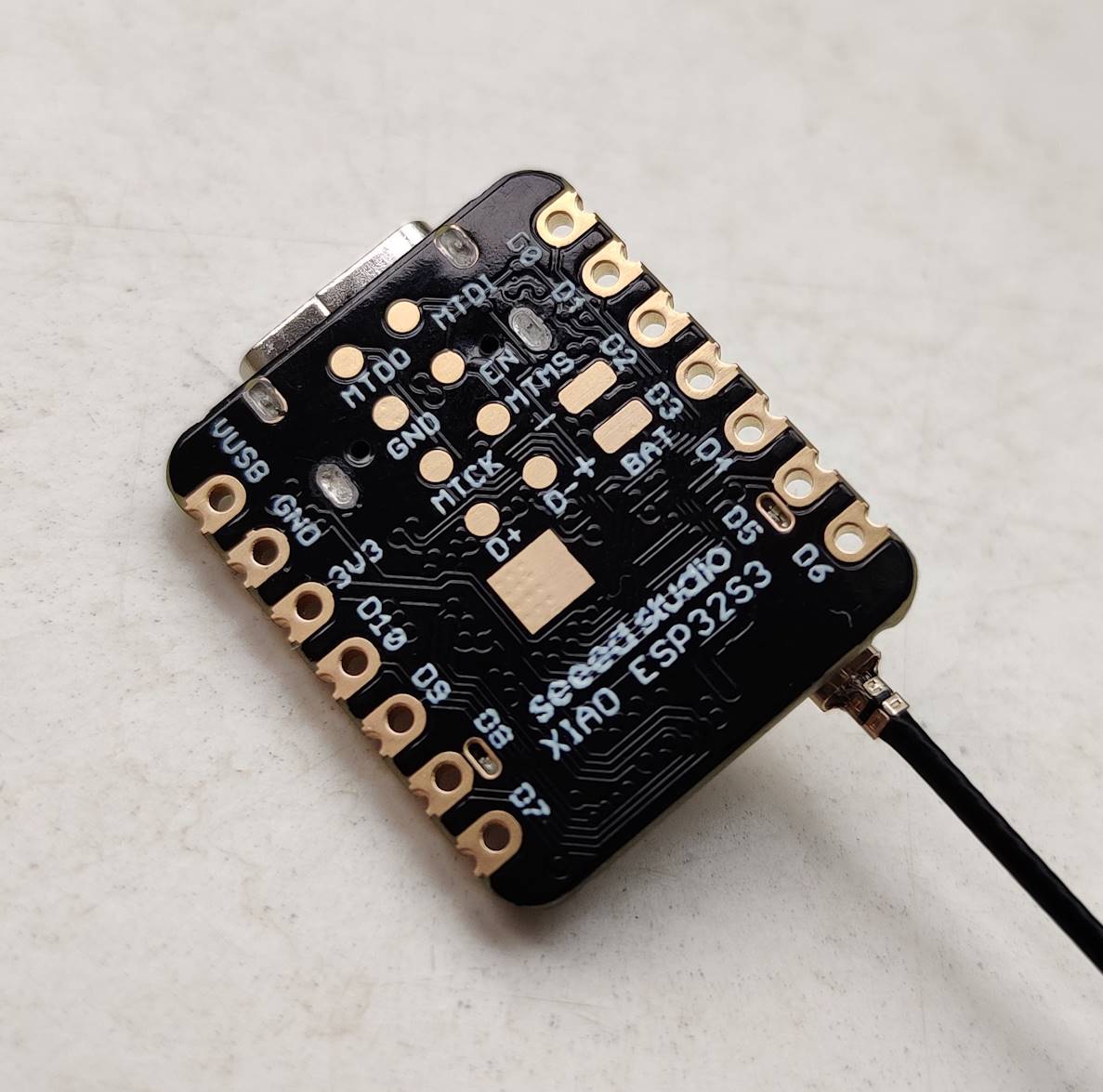

Seeed Xiao ESP32S3 - Front Seeed Xiao ESP32S3 - Back Seeed Xiao ESP32S3 - Front with antenna
